Numerical Control Quenching Machine Tool
The CNC quenching machine tool series includes two types: vertical quenching machine tools and horizontal quenching machine tools.
Classification:
Numerical Control Quenching Machine Tool
Key words:
Numerical Control Quenching Machine Tool
Product Description

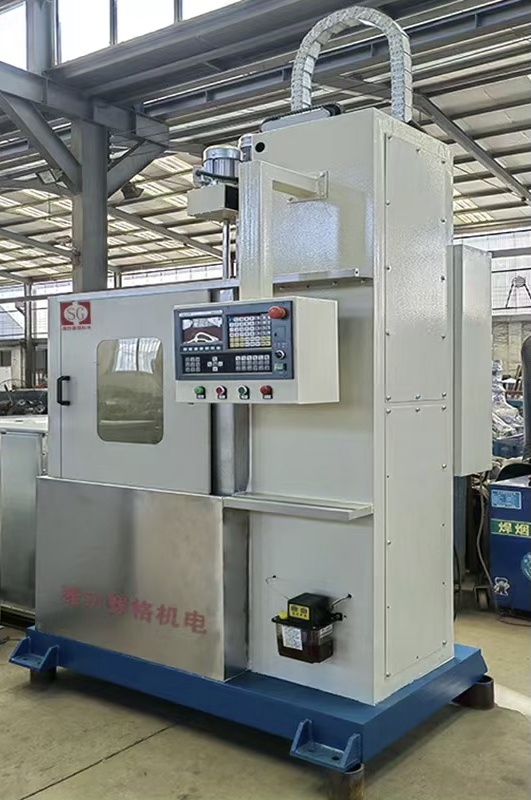

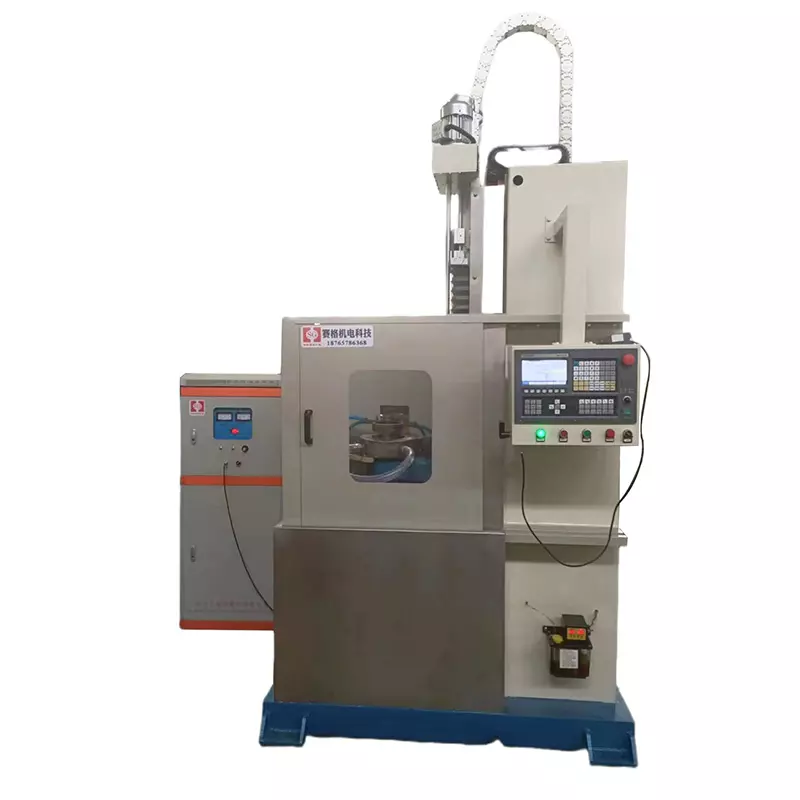

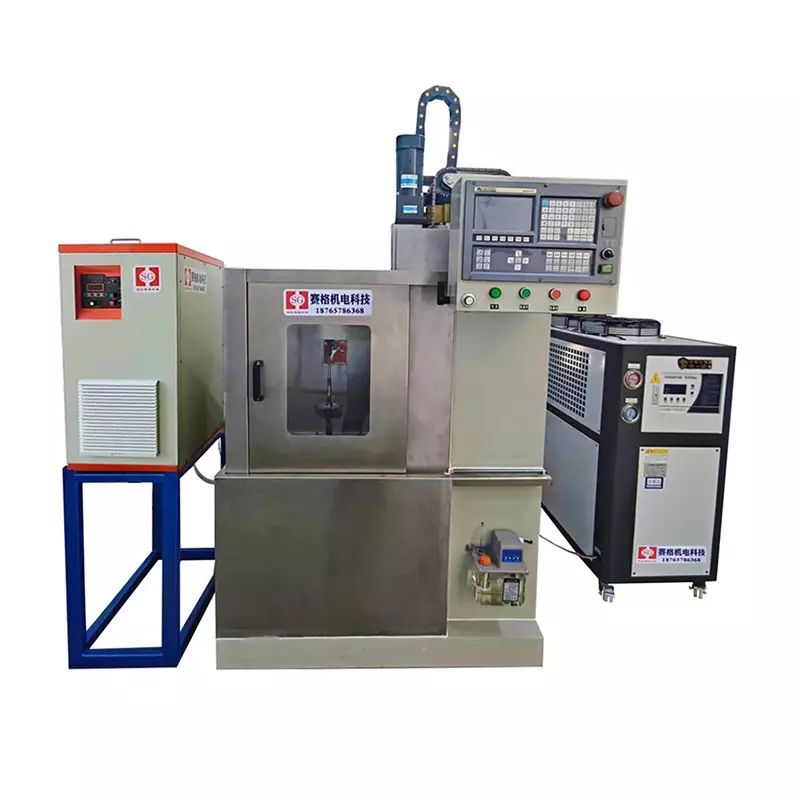

The CNC quenching machine tool series includes two types: vertical quenching machine tools and horizontal quenching machine tools. The vertical quenching machine tools include: SK600, SK1000, SK1200, SK1500, SK2000 and above. The horizontal quenching machine tools include: transformer mobile type and workpiece mobile type. The length of the quenching machine tool can be designed and manufactured according to customer requirements.
Technical parameters
Number of workstations: 1, dual workstation (customized required)
Maximum clamping part length: 600mm, 1000mm, 1200mm, 1500mm, 2000mm (can be designed and customized according to user requirements)
Maximum quenching length: 600mm, 1000mm, 1200mm, 1500mm, 2000mm (can be designed and customized according to user requirements)
Workpiece rotation speed: 60-350r/min
Maximum workpiece weight: 120kg; Quenching feed speed: 6-3000mm/min
Workpiece rapid speed: 6000mm/min
Maximum workpiece diameter: 500mm
CNC system control accuracy: 0.001mm
Operating mode: automatic or manual
Machine tool positioning accuracy: 0.03mm
Mechanical configuration:
① Ball screw, for CNC cutting machine tools, customized as a whole, good quality, high precision;
② Linear bearings are used for guide rails, with high precision, low friction, long life, and hard chrome plated surface for strong rust prevention;
③ The water tank is completely sealed, and no special infrastructure projects are required.
Spindle rotation stepless speed regulation.
Total power of machine tool motor: 2.0KW
Machine tool weight: about 0.92 tons
Machine tool dimensions: length 1500×width 1000×height 2400/2900/3400, reference size, please contact the manufacturer for details.
Quenching method: continuous scanning quenching; timed quenching; segmented scanning quenching; quenching speed adjustment: stepless adjustable
Working speed adjustment: stepless adjustable
Applicable quenching workpieces: disks, gears, shafts, etc.
