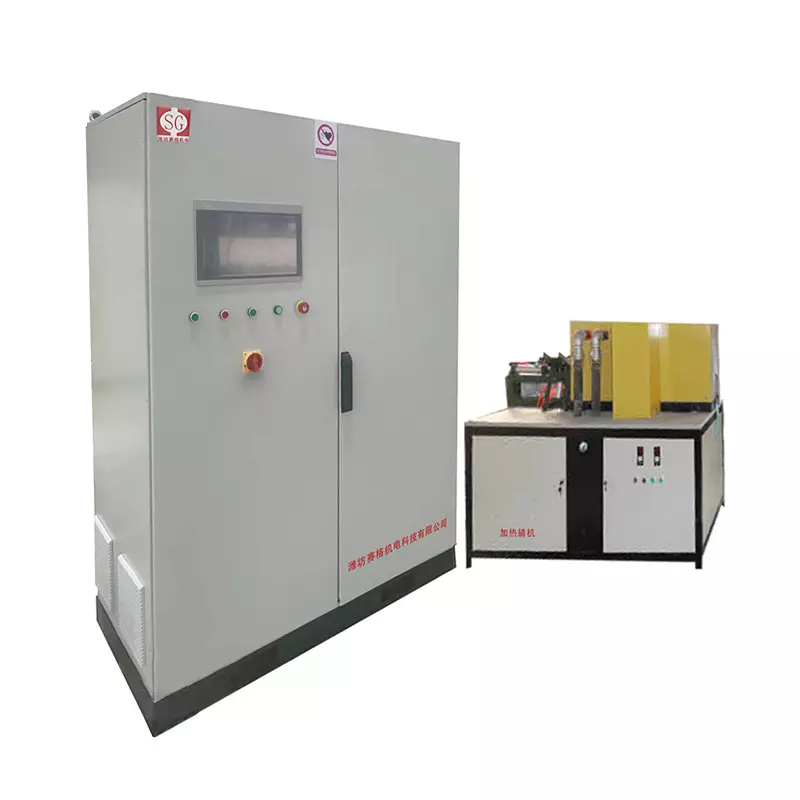

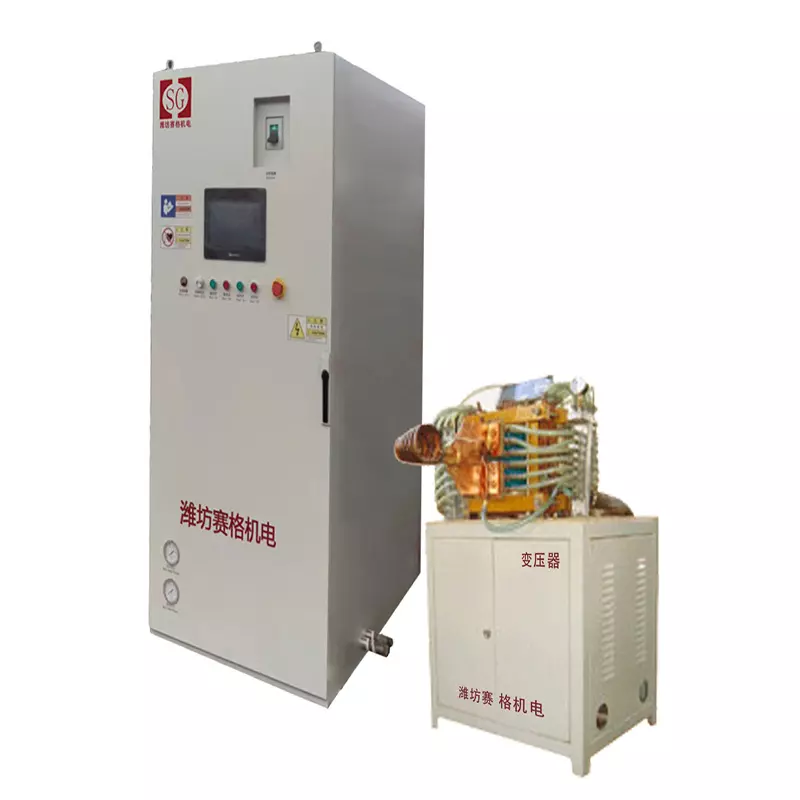

DIHP series digital induction heating equipment
The medium frequency power supply series adopts parallel resonance in structure, adopts our company's fourth-generation inverter control technology in control, and uses IGBT as the main power device.
Classification:
DIHP series digital induction heating equipment
Key words:
DIHP series digital induction heating equipment
Product Description
Main Features
(1) The medium frequency power supply series adopts parallel resonance in structure, adopts our company's fourth-generation inverter control technology in control, and uses IGBT as the main power device.
(2) Wide frequency range from 1KHZ to 20KHZ , which can be matched according to the size of the specific heating workpiece or the depth of heat penetration requirements, with a wide range of adaptability.
(3) Adopting the traditional medium frequency parallel resonance structure, the load matching is simple, the equipment efficiency is high and the utilization rate is high.
(4) It adopts our company's fourth-generation inverter control technology and full soft switch precision control, with high equipment working reliability and low maintenance rate.
Advantages and Applications
1. Heating power, heating time, insulation power, and insulation time are independently adjustable to control the heating curve and temperature;
2. Infrared thermometers can be used for precise temperature control of workpieces as required;
3. The heating equipment has constant power and constant current functions, and energy monitoring functions can be added as needed.
Technical Parameters
Model | Working Power Supply | Working Voltage Range (V) | Output Power (KW) | Oscillation Frequency (Hz) |
DIHP100 | 3×380Vac | 500-530v | 100 | 1-15KHz |
DIHP160 | 3×380Vac | 500-530v | 160 | 1-15KHz |
DIHP200 | 3×380Vac | 500-530v | 200 | 1-15KHz |
DIHP250 | 3×380Vac | 500-530v | 250 | 1-15KHz |
DIHP300 | 3×380Vac | 500-530v | 300 | 1-15KHz |
